DIN Union

DIN Union

01

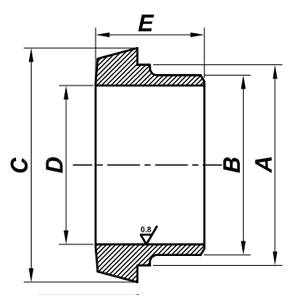

DIN WELDABLE LINER

DIN Weldable Liner

SIZE	A	B	C	D	E
10	18	13	22.5	10	17
15	24	19	28.5	16	17
20	30	23	36.5	20	18
25	35	29	44	26	22
32	41	35	50	32	25
40	48	41	56	38	26
50	61	53	68.5	50	28
65	79	70	86	66	32
80	93	85	100	81	37
90	103	93	111	89	35
100	114	104	121	100	44
125	137	129	150	125	34
150	163	154	176	150	37

02

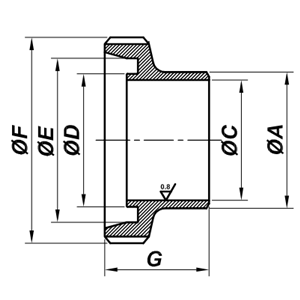

DIN WELDABLE MALEPART

DIN Weldable Malepart

SIZE	A	C	D	E	F	G
10	13	10	12	20	(RD28x1/8)	21
15	19	16	18	26	(RD34x1/8)	21
20	23	20	23	33	(RD44x1/6)	24
25	29	26	30	40	(RD52x1/6)	29
32	35	32	36	46	(RD58x1/6)	32
40	41	38	42	52	(RD65x1/6)	33
50	53	50	54	64	(RD78x1/6)	35
65	70	66	71	81	(RD95x1/6)	40
80	85	81	85	95	(RD110x1/4)	45
90	95	89	94	104	(RD120x1/4)	45
100	104	100	104	114	(RD130x1/4)	54
125	129	125	114	142	(RD160x1/4)	46
150	154	150	155	167	(RD190x1/4)	50

03

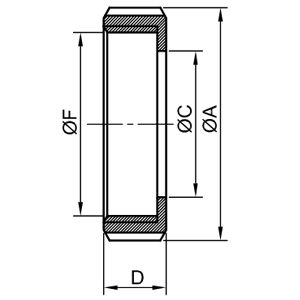

DIN TYPE NUT

DIN Type Nut

SIZE	A	C	D	F
10	38	19	18	(RD28x1/8)
15	44	25	18	(RD34x1/8)
20	54	31	20	(RD44x1/6)
25	63	36	21	(RD52x1/6)
32	70	42	21	(RD58x1/6)
40	78	49	21	(RD65x1/6)
50	92	62	22	(RD78x1/6)
65	112	80	25	(RD95x1/6)
80	127	94	30	(RD110x1/6)
90	138	104	30	(RD120x1/6)
100	148	115	31	(RD130x1/6)
125	178	138	35	(RD160x1/6)
150	210	134	40	(RD190x1/6)

04

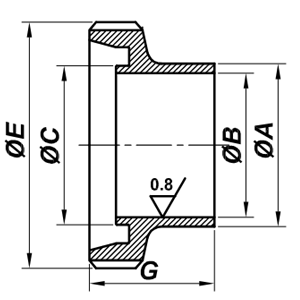

DIN IMPERIAL WELDABLE MALEPART

DIN Imperial Weldable Malepart

SIZE	A	B	C	E	G
1"	25.4	22.2	30	(RD52x1/6) 52.0	29
1.1/4"	31.75	28.5	36	(RD58x1/6) 58.0	32
1.1/2"	38.1	34.9	42	(RD65x1/6) 65.0	33
2"	50.8	47.6	54	(RD78x1/6) 78.0	35
2.1/2"	63.5	60.3	71	(RD95x1/6) 95.0	40
3"	76.2	73.0	85	(RD110x1/4) 110.0	45
4"	101.6	97.6	104	(RD130x1/4) 130.0	54

05

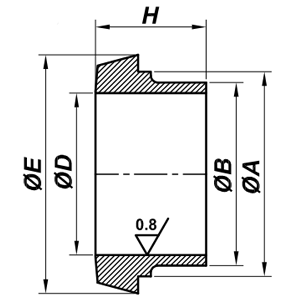

DIN IMPERIAL WELDABLE LINER

DIN Imperial Weldable Liner

SIZE	A	B	D	E	H
1"	35	25.4	22.2	44	22
1.1/4"	41	31.75	28.5	50	25
1.1/2"	48	38.1	34.9	56	26
2"	61	50.8	47.6	68.5	28
2.1/2"	79	63.5	60.3	86	32
3"	93	76.2	73.0	100	37
4"	114	101.6	97.6	121	44
